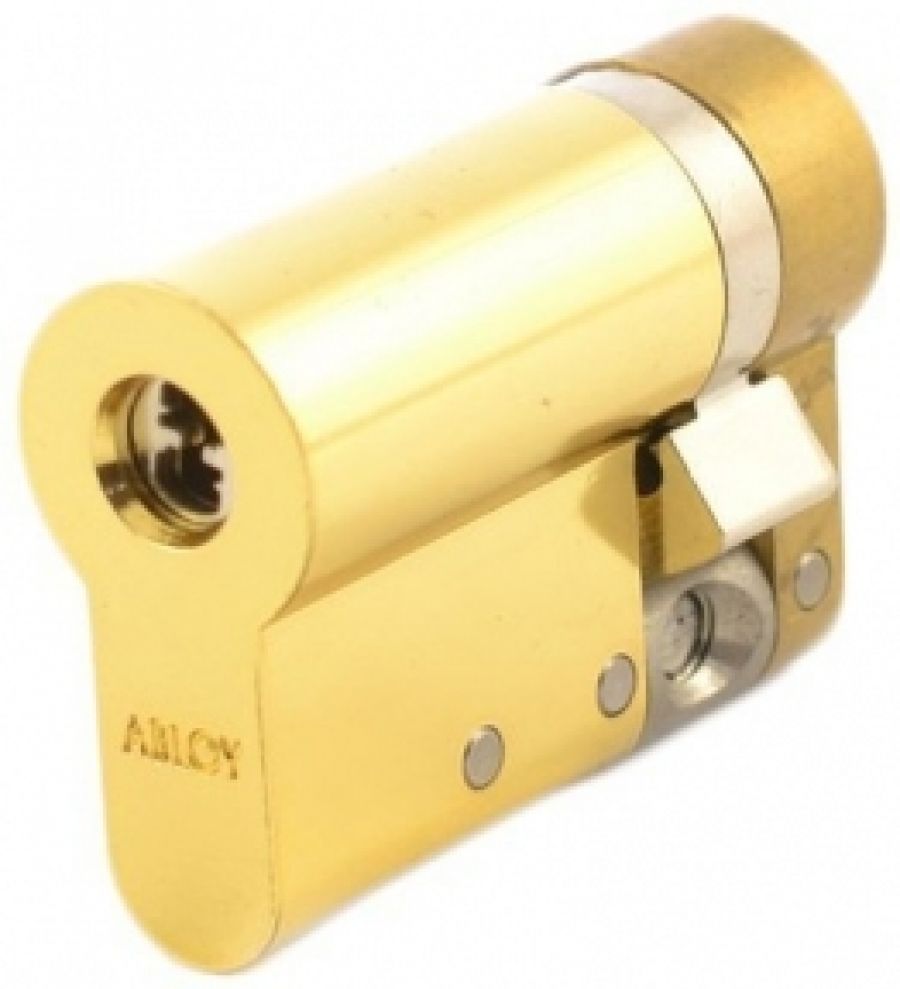

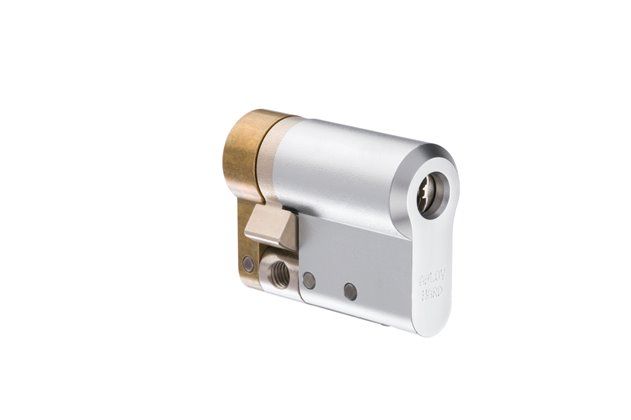

Single cylinder to be used with mortice lock cases and other applications with DIN / Europrofile cylinder dimensions. Lock is operated by key from outside.
* Available at local stock Satin Chrome and Brushed Gold Finishes
* Other models, modifications and finishes are available upon request.
Overview of Advantages
• Can be used with wide range applications for DIN cylinders
• Suitable for both outer and inner door use
• Adjustable length with extension system to match different door thicknesses
• Adjustable locked position of cam
• Several plating options
Technical data

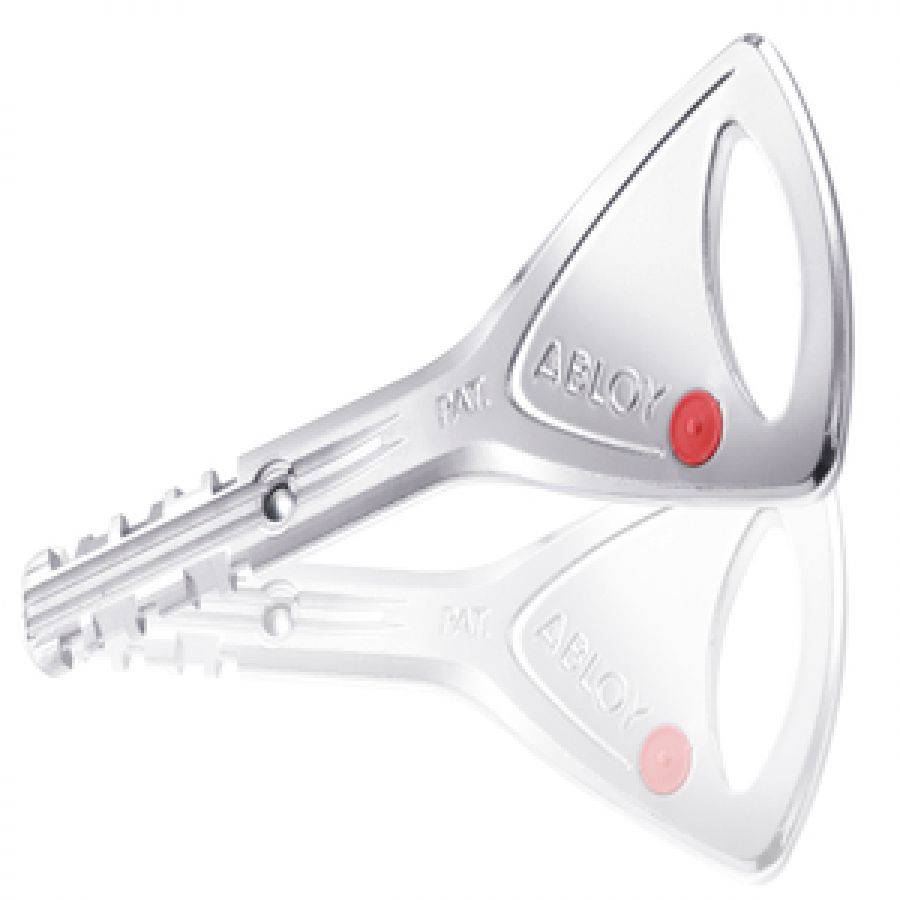

Available key systems ABLOY PROTEC²,
Available plating options Bright chrome (Cr), Satin chrome (HCr), Brushed nickel (NiHa), Polished gold PVD, Brushed gold PVD, Black PVD
Cylinder cross section according standard DIN 18252
Cylinder length PROTEC² 31 mm,
Length adjustable with 5 mm steps 31–81 mm, with 10 mm steps 81–131 mm
