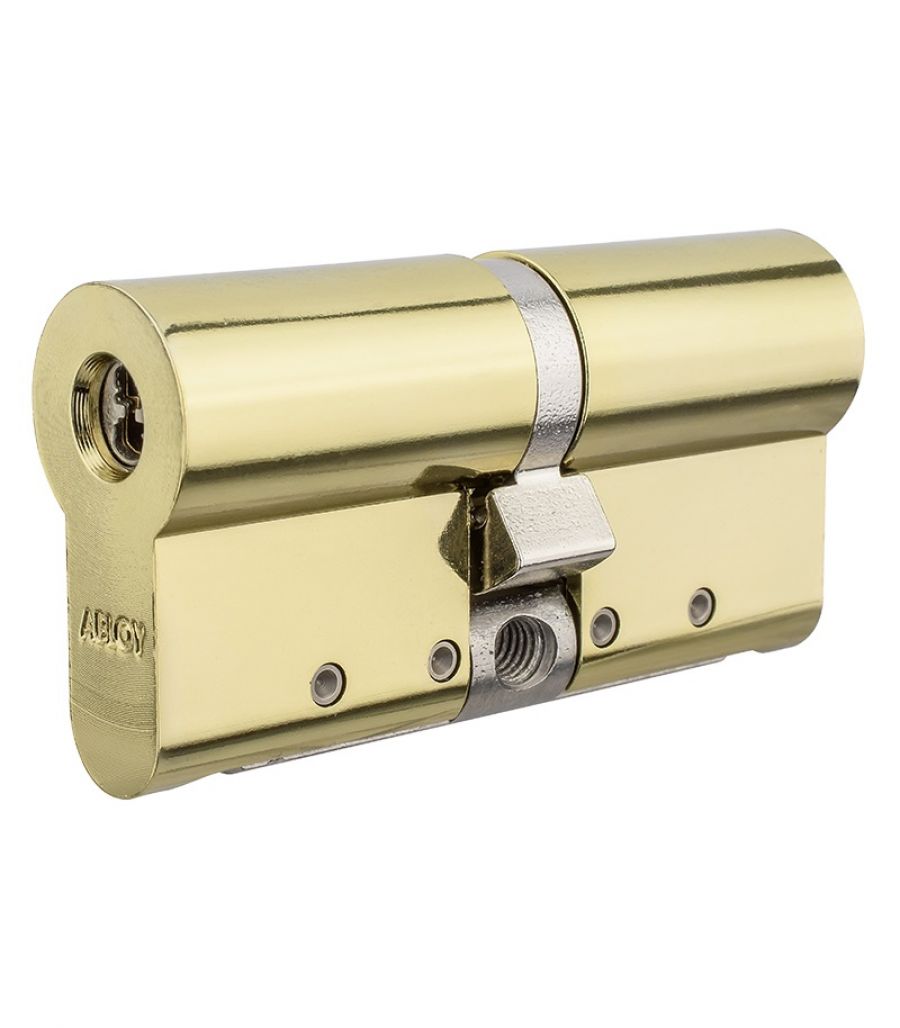

ABLOY PROTEC² Cylinder CY322

Double cylinder to be used with mortice lock cases with DIN / Europrofi le cylinder dimensions. Lock is operated by key from both sides.

* Available at local stock Satin Chrome and Brushed Gold Finishes

* Other models, modifications and finishes are available upon request.


Overview of Advantages
  • Can be use with wide range applications for DIN cylinders
  • Suitable for both outer and inner door use
  • Adjustable length with extension system to match different door thicknesses
  • Adjustable locked position of cam
  • Several plating options

Technical data

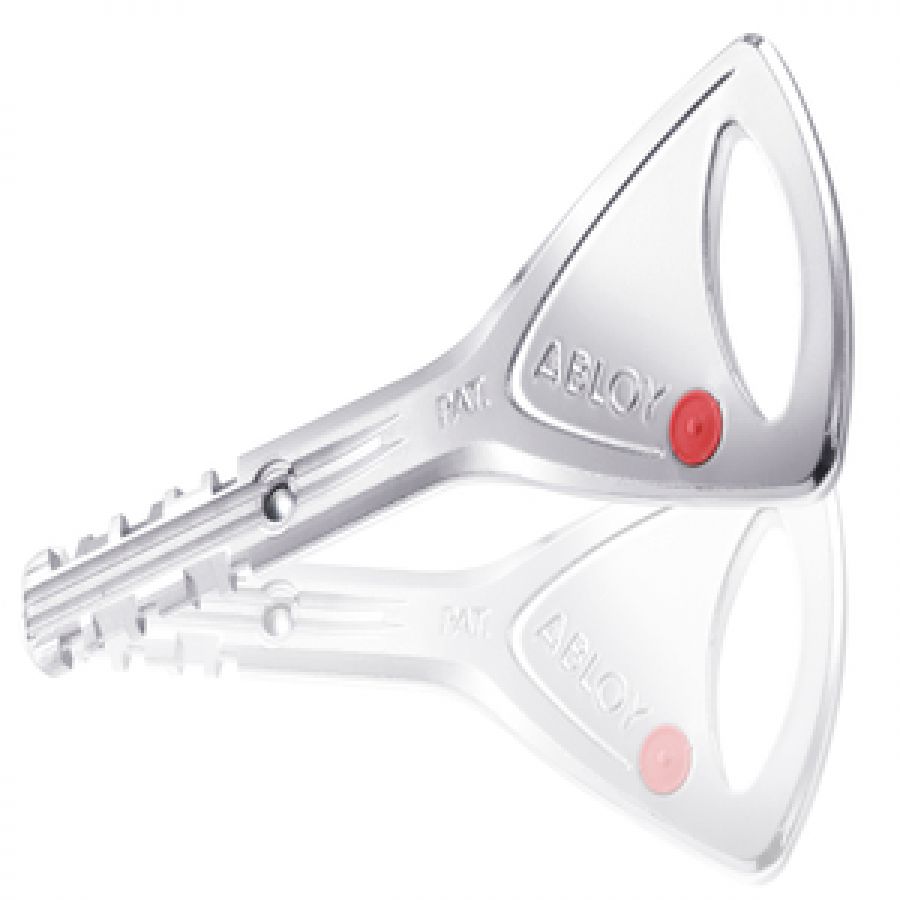

  • Available key systems ABLOY PROTEC²,
  • Available plating options Bright chrome (Cr), Satin chrome (HCr), Brushed nickel (NiHa), Polished gold PVD, Brushed gold PVD, Black PVD
  • Cylinder cross section according standard DIN 18252
  • Cylinder length PROTEC² 31mm,
  • Length adjustable with 5mm steps 31–81mm, with 10mm steps 81–131mm Key related security 6, attack resistance C
  • Weight 0.23 kg
