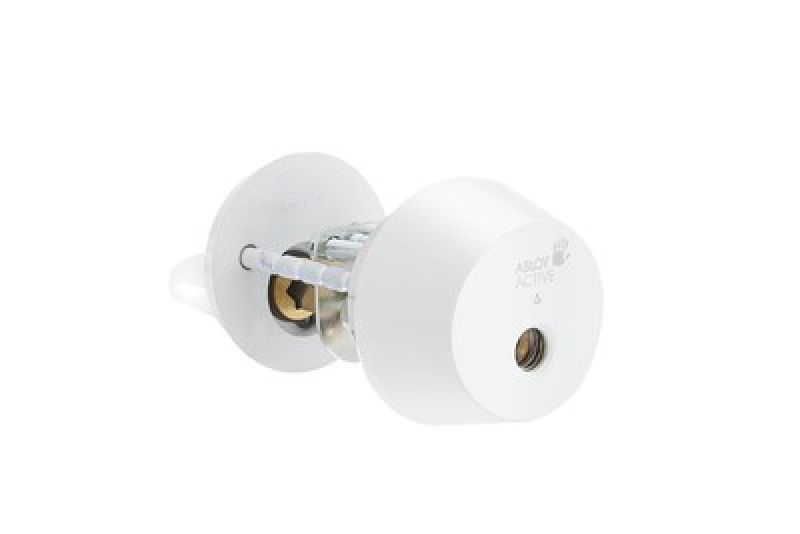

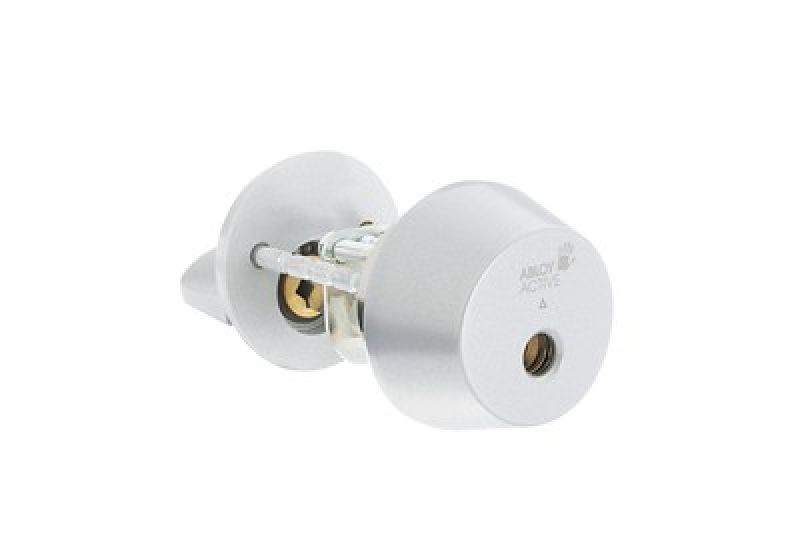

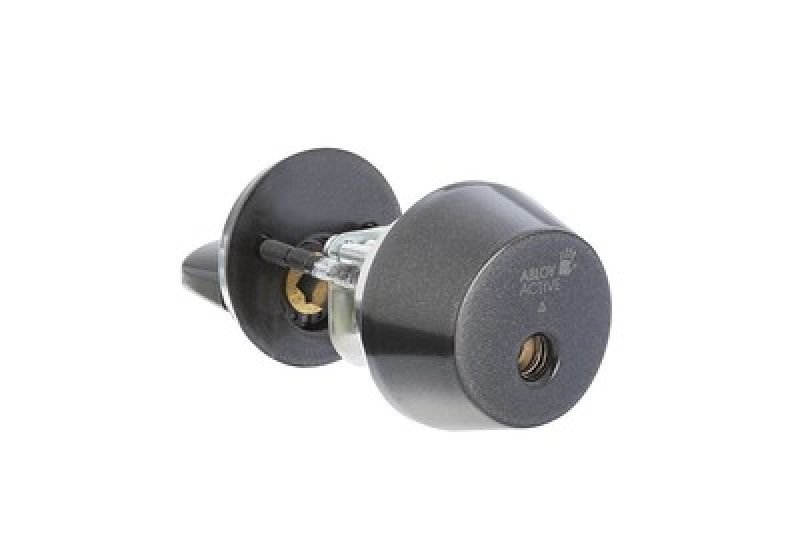

Cylinder with thumbturn to be used with mortice lock cases for standard doors, both mechanical and electric lock cases. Lock is operated by key from outside and by thumbturn inside the door.
* Available at local stock Satin Finish
* Other models and finishes are available upon request.
Overview of Advantages
• Can be used with wide range of Finnish type mortice lock cases for standard doors
• Suitable for both outer and inner door use
• Adjustable during installation to match different door thicknesses
• Several plating options, also antimicrobial paints
Technical data
Available key systems ABLOY PROTEC²
Available plating options Bright chrome (Cr), Satin chrome (HCr), Bright brass (MSKiLa), Satin brass (MSHaLa), Brushed nickel (NiHa), Antimicrobial painted ACTIVE Val (white)/ Mus (black)/Har (gray)/Gra (graphite)
Cylinder ring diameter 52mm
Cylinder ring height Standard 25mm, for thin doors 31mm
Blind plate diameter 50mm Suitable for fire doors - Yes
