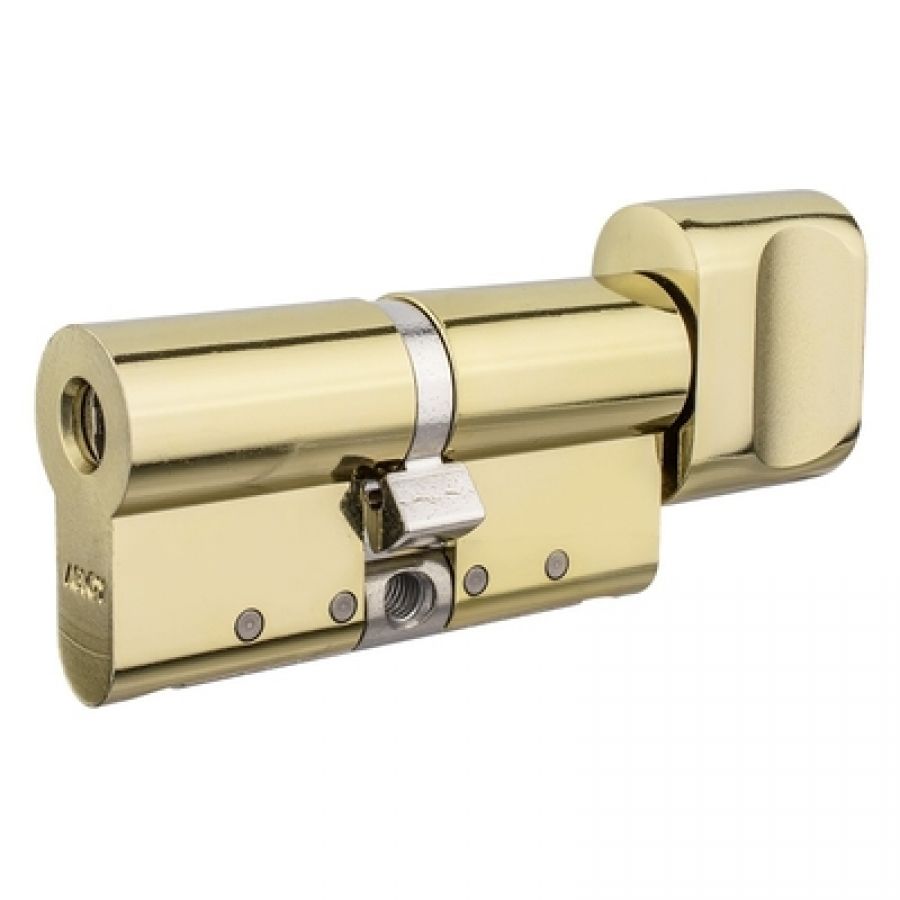

ABLOY PROTEC² Cylinder CY323

Cylinder with thumbturn to be used with mortice lock cases with DIN / Europrofile cylinder dimensions. Lock is operated by key from outside and by thumbturn inside.

* Available at local stock Satin Chrome and Brushed Gold Finishes

* Other models, modifications and finishes are available upon request.


Overview of Advantages
• Can be use with wide range applications for DIN cylinders
• Suitable for both outer and inner door use
• Adjustable length with extension system to match different door thicknesses
• Adjustable locked position of cam
• Several plating options

Technical data

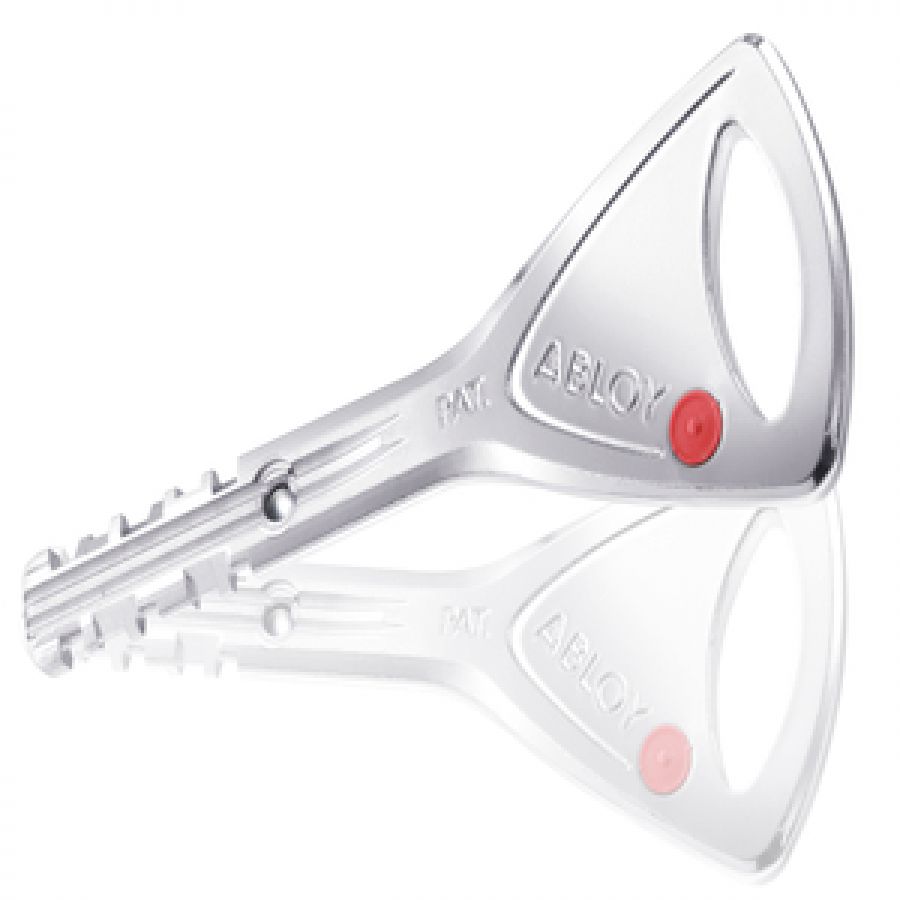

  • Available key systems ABLOY PROTEC²,
  • Available plating options Bright chrome (Cr), Satin chrome (HCr), Brushed nickel (NiHa), Polished gold PVD, Brushed gold PVD, Black PVD
  • Cylinder cross section according standard DIN 18252
  • Cylinder length PROTEC² 31mm,
  • Length adjustable with 5mm steps 31–81mm, with 10mm steps 81–131mm Key related security 6, attack resistance C
  • Weight 0.24 kg
