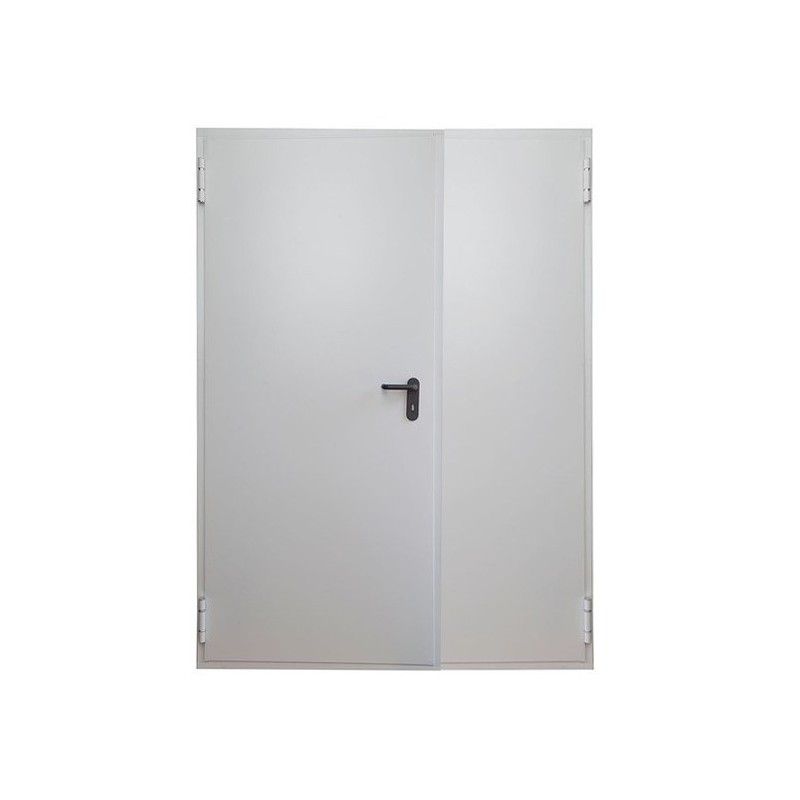

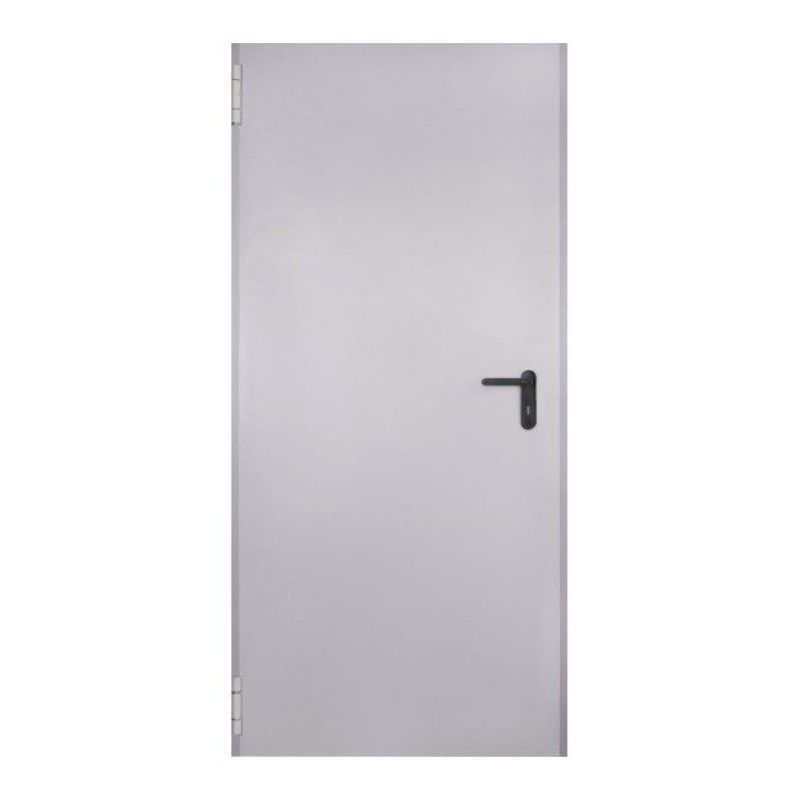

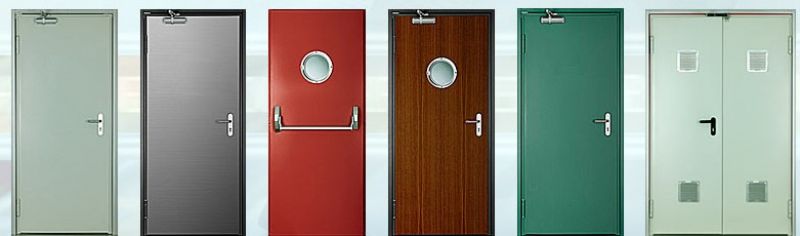

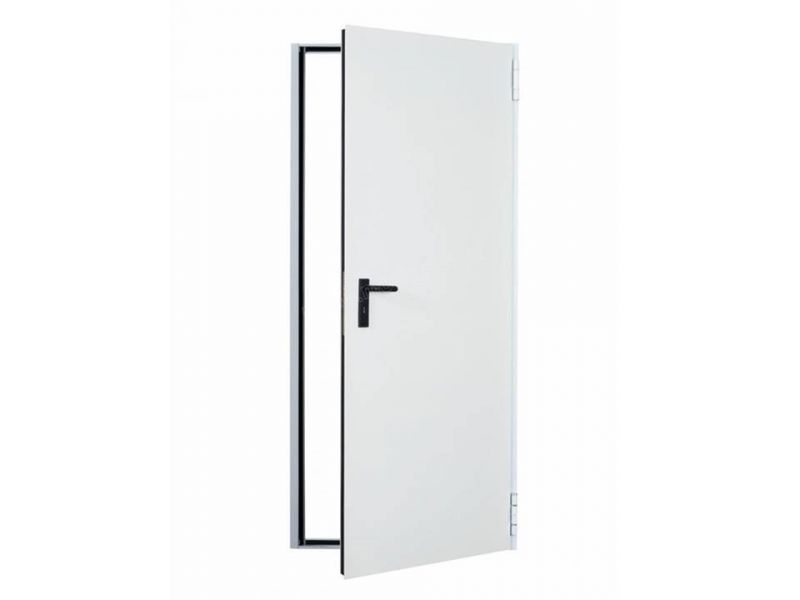

Used in passageways of buildings between the fire compartments. Fire Doors are made of non-combustible materials that prevent fire spreading for certain time.
Equipment
door leafs are made of zinc-coated steel plates
screw-fastening frame with cover lists, made of zinc-coated steel plates
lift hinges of steel
ASSA ABLOY locks and hardware
reinforcements for pull and closer
cover caps for fastening holes
quick latch installed (double doors only)
instructions for installation, handling, maintenance and painting
Accessories
kick plates
alternative quick latch (double doors)
different door closer types
window, max 460 x 560 mm
fitting and tubing for electric lock, door magnet, wires and lead cover, locations and models acc. to type approvals
fitting for security lock
type approved frame with gasket, U-value < 1,0 W/m2K
alternative surface handling and powder painting, standard shades*)
Other accessories and iron mongery according to tender.
Available standard shades RAL– other colours according to tender.
