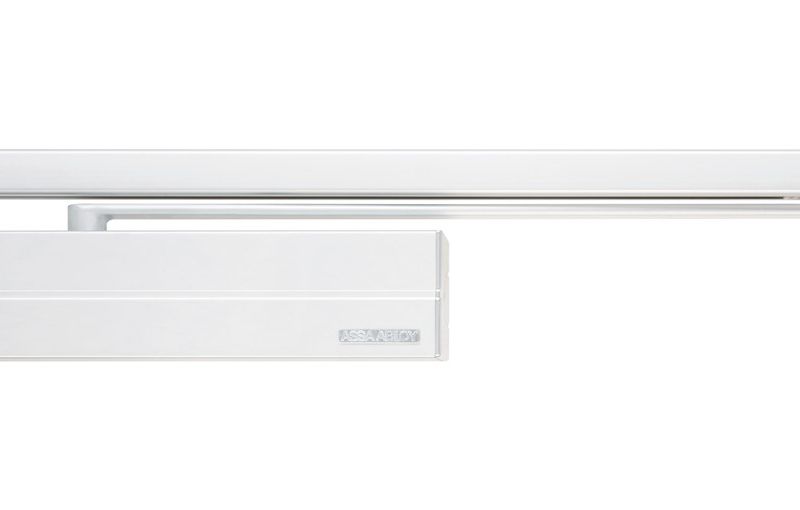

Door closer with Cam-Motion® technology and height-adjustable guide rail G195 or standard guide rail G193. Fulfils barrier-free building requirements (CEN TR 15894). Certified in compliance with EN 1154, size 3-6. Suitable for fire and smoke protection doors. For single action doors up to 1400 mm wide. Can be used in four installation types: hinge and non-hinge sides in standard and frame installation.

• DC700 Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right-handed doors
• Axis continuously height adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 170°
• Effective backcheck and latching speed range adjustable
• Large range of applications
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel Customised finishes available on request
